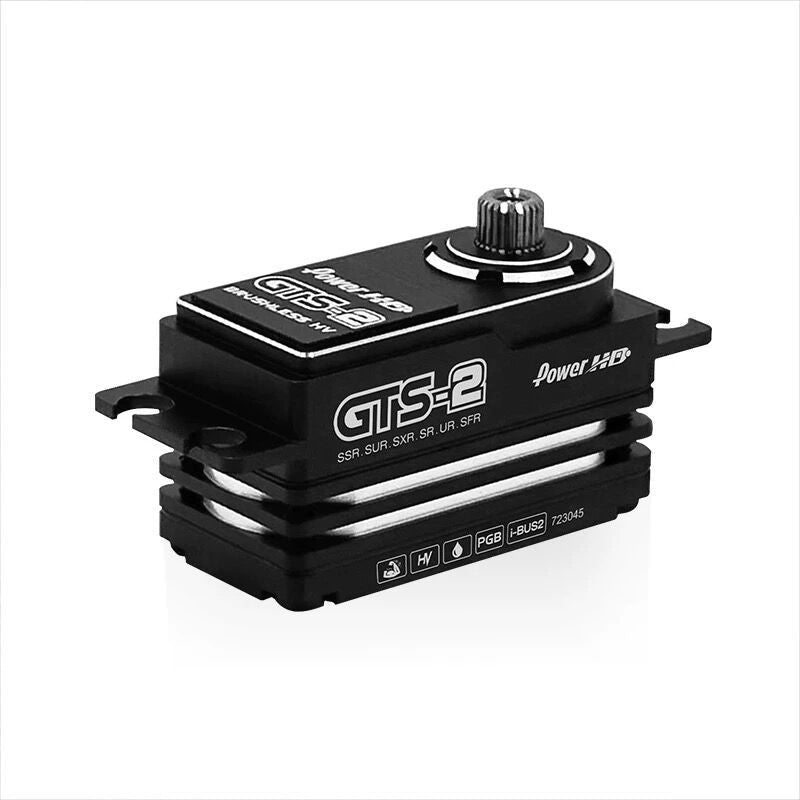

PHDGTS-2-60MM PowerHD GTS-2 HV Brushless Servo 23KG, 0.065sec @ 8.4V 60mm
PHDGTS-2-60MM PowerHD GTS-2 HV Brushless Servo 23KG, 0.065sec @ 8.4V 60mm
Regular price
$212.99 CAD
Regular price
Sale price
$212.99 CAD
Unit price
per
PowerHD High Voltage 4-Pole Brushless Servo 23KG, 0.065 sec @ 8.4V 60mm Lead
Specifications:
| Torque (6.0V) | 15.0 kg-cm / (208.3 oz/in) |
| Torque (7.4V) | 18.0 kg-cm / (250.0 oz/in) |
| Torque (8.4V) | 23.0 kg-cm / (319.4 oz/in) |
| Speed | 0.080 sec (6.0V) 0.073 sec (7.4V) 0.065 sec (8.4V) |
| Operating Voltage | 6.0 ~ 8.4 DC Volts |
| Stall Current | 3.6A |
| Weight | 49 g (1.73 oz) (Wire length: JR 180mm) |
| Motor Type | 4-pole Brushless Motor |
| Gear Type | Titanium + 7075 |
| Operating Temperature | -10℃ ~ 60℃ |
| Working Frequency | 1520μs /50 - 1666hz |
| Size | 41.0 x 20.0 x 23.6 mm (1.61 x 0.79 x 0.93 in) |
| Compatibility | ibus2 and program box |
